A cell site gateway is a key component in a cellular network that connects cell sites to the operator’s core network. It enables communication, handles protocol conversion, routes traffic, provides security, and allows for network management. A disaggregated cell site gateway offers flexibility, cost efficiency, faster innovation, simplified management, and improved interoperability. It provides mobile operators with greater control over their network infrastructure, enabling them to optimize performance, reduce costs, and adapt to evolving technology standards and market demands.
In addition to mobile traffic a DCSG can handle fixed network traffic. By using a single gateway for both cellular and fixed networks, operators can streamline their network infrastructure, reduce costs, and simplify management and operations. This enables them to provide integrated services and seamless connectivity for both mobile and fixed network users.

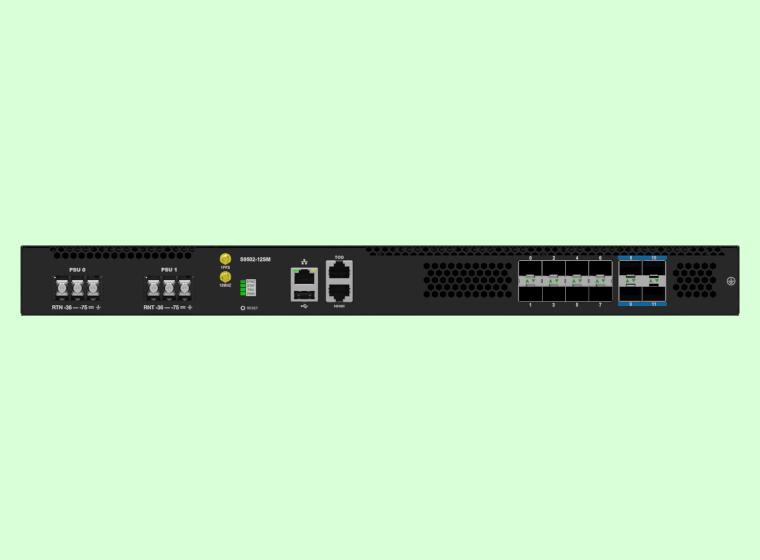

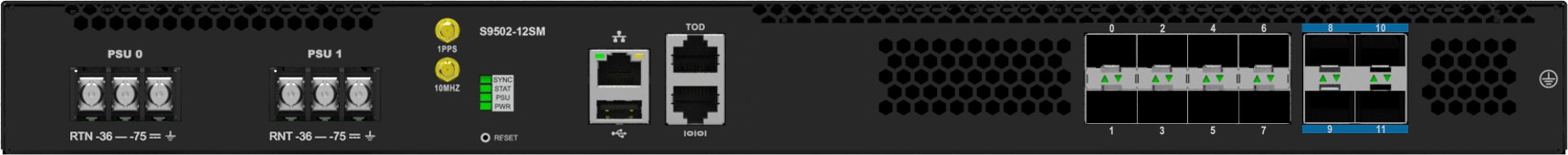

UfiSpace S9502-12SM
Overview – UfiSpace S9502-12SM
The UfiSpace S9502-12SM Disaggregated Cell Site Gateway (DCSG) is an innovative solution that allows telecommunications service providers to seamlessly transition their Radio Access Networks (RAN) to 5G. Its fanless design minimizes moving parts, leading to reduced maintenance and an improved total cost of ownership (TCO). Equipped with 100M/1G port interfaces for 2G, 3G, and 4G BBUs, as well as 10G interfaces for 5G service capacities, the S9502-12SM ensures high throughput while consuming the least amount of power possible.
Utilizing Broadcom Qumran-UX silicon and Intel’s Denverton-NS CPU, the UfiSpace S9502-12SM offers service providers a highly reliable disaggregated cell site router to expand their services to the very edge of their network. This enables them to efficiently migrate from legacy systems to 5G Non-standalone and 5G Standalone networks.
Interfaces
- 4 x 1/10G SFP+ ports
- 8 x 100M/1G SFP ports
Features
- Low maintenance, low servicing, and lightweight for easy handling
- Compatible with open networking standards for programmable network solutions
- Easily migrate from legacy to 5G Non-standalone and 5G Standalone networks
- Enable 5G services with ultra-low forwarding latency, high precision frequency and phase timing synchronizations
- Temperature hardened for more reliable deployment at hard-to-reach cell sites
- Broadcom Qumran-UX silicon
- Supports SyncE and IEEE 1558v2 (T-BC, T-TC, and T-TSC)
- Integrated Stratum 3E OCXO with optional hold over performances
- Class C timing accuracy support
- Rich timing interfaces: ToD, 1PPS, and 10MHz
- Supports 100M/1G for legacy and 10G for 5G
- 1 RU small form factor with 250mm depth
- Fixed 1+1 redundant power supply
- Fanless chassis design

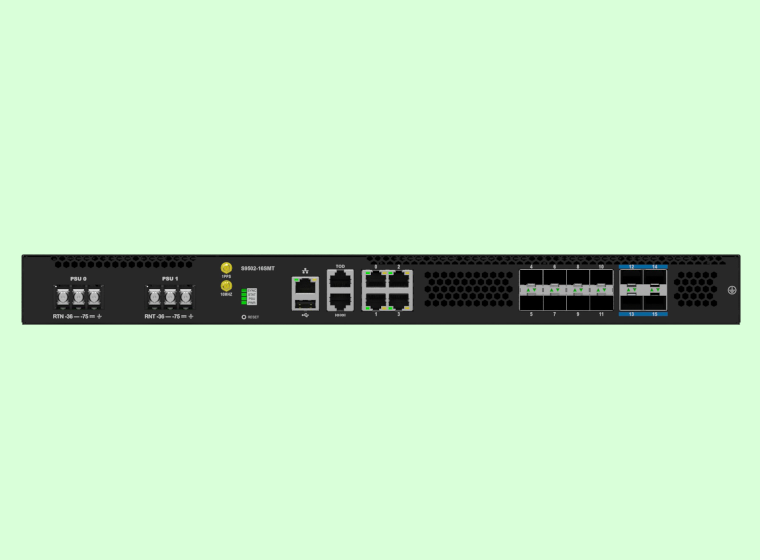

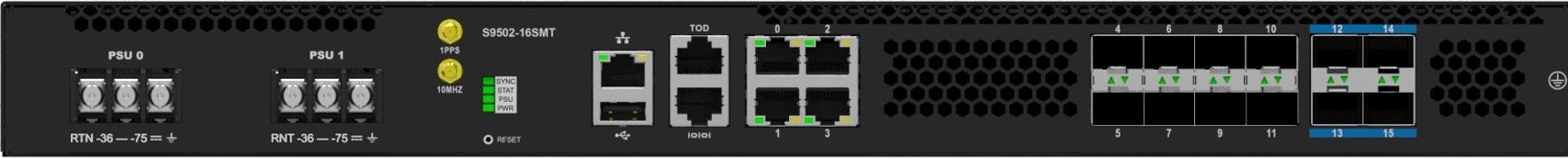

UfiSpace S9502-16SMT
Overview – UfiSpace S9502-16SMT
The UfiSpace S9502-16SMT is a high-performance, versatile open networking white box router that is designed to address the changing needs of backhaul transport requirements as telecoms make the transition from legacy technologies towards 5G. It is designed as fanless router to be implemented in locations with stricter requirements to noise control and power management.
The S9502-16SMT improves reliability and quality of the DCSG with a design that reduces the amount of movable parts, leading to less servicing needed due to wear and tear. With the Qumran-UX silicon from Broadcom and dual core processor to ensure performance, the UfiSpace S9502-16SMT is an ideal option for those hard to reach cell sites to minimize service runs. It also provides 100M/1G RJ45, 1G SFP and 10G SFP+ service interfaces to support both legacy and next gen cell sites with 1PPS, 10MHz and ToD timing interfaces to provide flexibility when enabling IEEE 1588v2 and SyncE timing features.
Interfaces
- 4 x 1/10G SFP+ ports
- 8 x 100M/1G SFP ports
- 4 x 100M/1G RJ45 ports
Features
- Class C timing accuracy
- Supports SyncE and IEEE 1588v2 (T-BC/OC, T-TC, T-TSC)
- Integrated Stratum 3E OCXO with optional hold over performances
- Rich timing input/output interfaces: ToD, 1PPS, and 10MHz
- Supports 100M/1G for legacy, 10G for next gen. services
- 1GB deep buffering
- Reduced noise and power consumption
- Fanless design to reduce maintenance
- 1+1 power supplies with redundancy support
- 1 RU compact design, suitable for industry standard 19″ racks

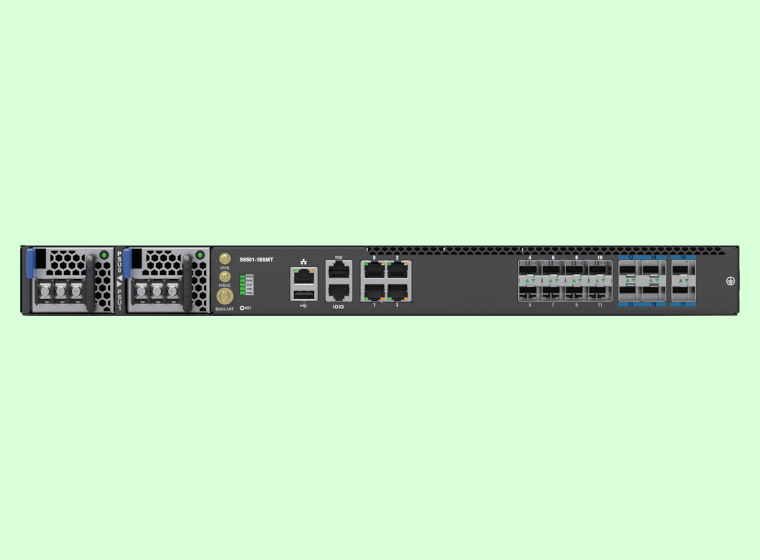

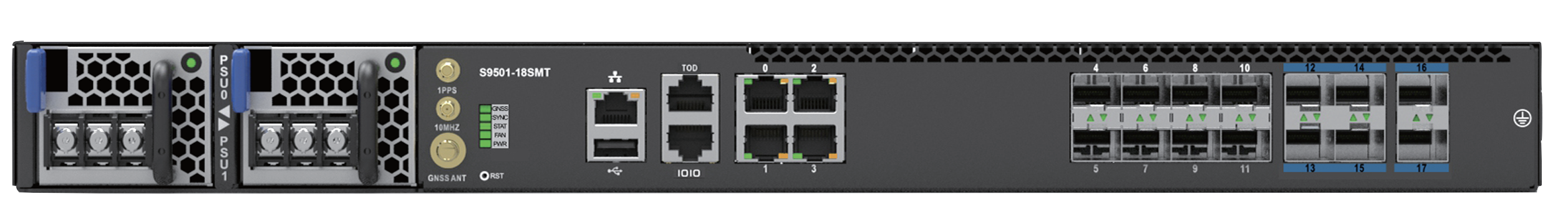

UfiSpace S9501-18SMT
Overview – UfiSpace S9501-18SMT
The UfiSpace S9501-18SMT is a lightweight and economic disaggregated cell site gateway (DCSG) that can aggregate both legacy and next-generation BBU data traffic. It also enables the deployment of open and disaggregated transport network services, while addressing the changing needs of the backhaul transport as telecoms make the transition from legacy technologies towards 5G New Radio (5G NR).
The UfiSpace S9501-18SMT is designed with high-speed interfaces (100M/1G serial RJ45, 1G SFP and 10G SFP+), timing synchronization interfaces (ToD, 1PPS and 10MHz) and BMC for remote monitoring and managing features. It is equipped with Broadcom’s Qumran-UX merchant silicon chip and provides 64GB switching capacity, 87.5Mpps packet throughput and 1GB deep packet buffer to accommodate the evolving cell site requirements of 5G services.
It is an OCP and TIP compliant open network white box solution that can support open standard NOS applications for flexibility in management, orchestration and feature expansions.
Furthermore, UfiSpace’s disaggregated cell site gateway routers are designed for outside plant installation, with temperature hardened case, front facing access and compact size to fit into smaller cabinets. Furthermore, the S9501-18SMT has hot-swappable power supplies and fan modules to provide convenience and lower the costs of maintenance.
Interfaces
- 6 x 1/10G SFP+ ports
- 8 x 100M/1G SFP ports
- 4 x 100M/1G RJ45 ports
Features
- Class C timing accuracy
- Supports SyncE and IEEE 1588v2 (T-GM, T-BC/OC, T-TC, T-TSC)
- Integrated Stratum 3E OCXO with optional hold over performances
- Rich timing input/output interfaces: ToD, 1PPS and 10MHz
- Internal GNSS receiver for master clock implementations
- 1GB deep buffering
- BMC for remote monitoring and management
- 2 hot swappable power supplies with 1+1 redundancy support
- 3 hot swappable fan modules with 2+1 redundancy support
- 1 RU compact design with 302mm depth suitable for standard 19″ racks

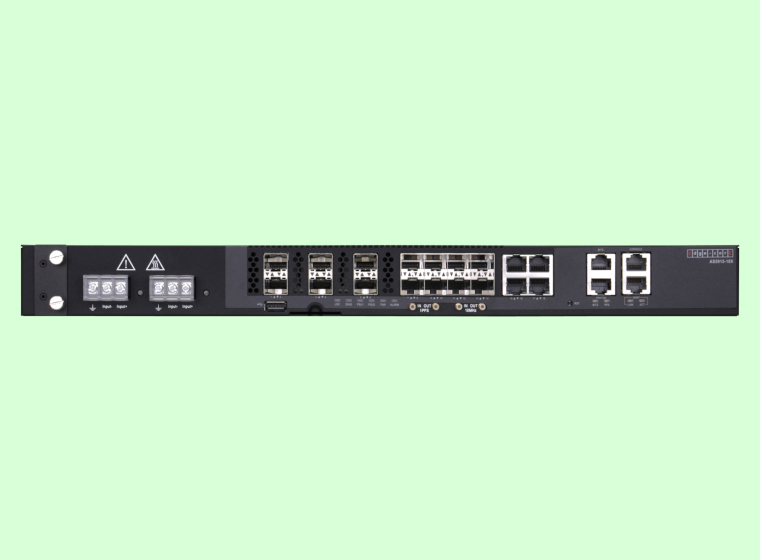

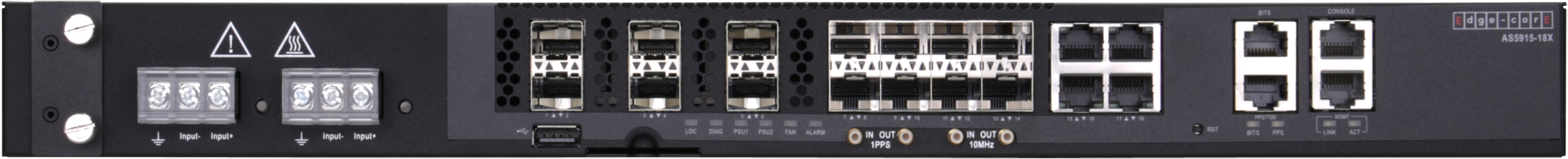

Edgecore AS5915-18X
Overview – Edgecore AS5915-18X
The Edgecore AS5915-18X is a compact-sized open cell site gateway platform that provides a combination of 1GE and 10 GE interfaces utilizing merchant silicon and an x86 processor to optimize performance for mobile networks. The CSR200 is a temperature hardened design, able to operate at a wide operational temperature range from -40°C to 70C, with built-in power boards and fans in a compact size that provides high availability for mission-critical applications. The AS5915-18X also supports industry-leading network timing and synchronization in hardware that makes it an ideal for current LTE and emerging 5G mobile backhaul network solutions. The AS5915-18X is installed with ONIE (Open Network Install Environment) that provides freedom of choice for the preferred NOS (Network Operating System) integration with user applications.
Interfaces
- 4 x 1/10G SFP+ ports
- 8 x 100M/1G SFP ports
- 4 x 100M/1G RJ45 ports
Features
- Comply with TIP (Telecom Infra Project) OOPT (Open Optical and Packet Transport) DCSG Specifications.
- Support IEEE1588v2 and SyncE functions in hardware.
- Full line-rate Layer 2 or Layer 3 forwarding speed of 64 Gbps.
- Compact 1RU form factor. Temperature harden design with 240 mm in depth.
- Supports side-to-side airflow SKU ( with Air Filter option).
- Hot-swappable, load sharing, redundant AC/48VDC PSUs.
- Built-in redundant fan modules.
- Management: Ethernet and console RJ-45 ports Hardware switch pre-loaded with Open Network Install Environment (ONIE).
- Compatible with ADVA Ensemble Activator
- Compatible with CapGemini SDvAS
- Compatible with Exaware ExaNOS
- Compatible with IP Infusion OcNOS
- Compatible with Open Network Linux (ONL)

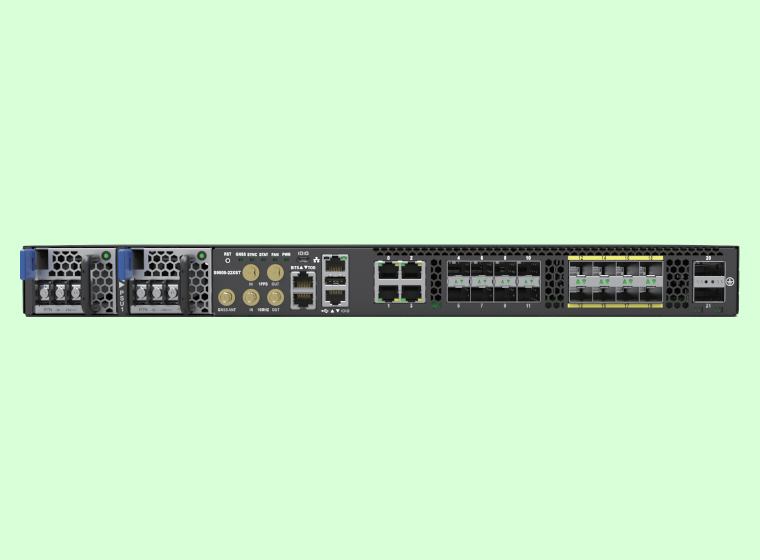

UfiSpace S9500-22XST
Overview – UfiSpace S9500-22XST
The UfiSpace S9500-22XST is a disaggregated cell site gateway router (DCSG) that enables the deployment of open and disaggregated transport network services, while addressing the changing needs of the backhaul transport as telecoms make the transition from legacy technologies towards 5G New Radio (5G NR).
The S9500-22XST is future proof with dense high-speed interfaces (100M/1G RJ45 for legacy, 10G/25G for 5G, and 40G/100G for backhaul) and full timing interfaces (ToD, BITS, 1PPS and 10MHz). It is equipped with a powerful processor, 2GB deep buffer and the hardware timing support needed (full SyncE and IEEE 1588v2) to accommodate the evolving cell site requirements as telecoms transition towards 5G.
UfiSpace’s disaggregated cell site gateway routers are designed for outside plant installation, with temperature hardened case and comact size to fit into smaller cabinets. Furthermore, the S9500-22XST has hot-swappable power supplies and fan modules to provide convenience and lower maintenance costs.
Interfaces
- 2 x 40/100G QSFP28 ports
- 8 x 10/25G SFP28 ports
- 8 x 1/10G SFP+ ports
- 4 x 100M/1G RJ45 ports
Features
- Hardware supports full SyncE and IEEE 1558v2 (T-GM, T-BC, T-TC and T-TSC)
- Integrated Stratum 3E OCXO with optional hold over performances
- Class C timing accuracy
- Internal GNSS receiver for master clock implementations
- Rich timing interfaces: ToD, 1PPS, BITS and 10MHz
- 2GB deep buffering
- Individual BMC for monitoring and managing health status
- 1 RU small form factor with 300mm depth
- Hot swappable power supplies with 1+1 redundancy support
- Hot swappable fan modules with 2+1 redundancy suppor

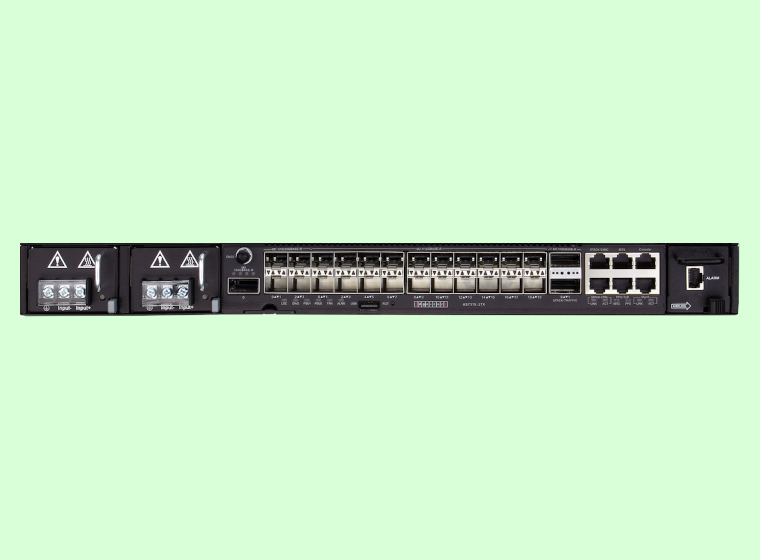

Edgecore AS7315-27X
Overview – Edgecore AS7315-27X
The Edgecore AS7315-27X (CSR310) is an open cell site gateway platform that is OCP Accepted and TIP DCSG Compliant. It is temperature hardened. Therefore, the AS7315-27X is able to operate at wide operational temperature range from -40C to 65°C. It is equipped with load-sharing redundant/hot-swappable PSUs and fan modules that provides high availability and hassle-free maintenance.
The AS7315-27X builds in industry-leading network timing and synchronization functions that makes it an ideal solution for current LTE and emerging 5G mobile backhaul network. The AS7315-27X is installed with ONIE (Open Network Install Environment) that provides the freedom of choice for the preferred NOS (Network Operating System) integration.
Interfaces
- 3 x 40/100G QSFP28 ports
- 4 x 1/10/25G SFP28 ports
- 20 x 1/10G SFP+ ports
Features
- Open cell site gateway platform for mobile backhaul networks.
- Full line-rate Layer 2 or Layer 3 forwarding of 300 Gbps.
- High resilience in stacking configuration of two AS7315-27X units.
- Support IEEE1588v2 and SyncE functions in hardware.
- Rack mountable in standard 19″ racks.
- Supports side-to-side airflow SKU.
- All ports and PSUs are accessible on the front.
- Hot-swappable, load sharing, redundant AC/48VDC PSUs.
- Hot swappable redundant fan modules.
- Management: Ethernet and console RJ-45 ports; USB storage port.
- Hardware switch pre-loaded with Open Network Install Environment (ONIE).
- Compatible NOS
- ADVA Ensemble Activator.
- CapGemini SDvAS
- Exaware ExaNOS.
- Infinera CNOS.
- IP Infusion OcNOS
- Open Network Linux (ONL).3

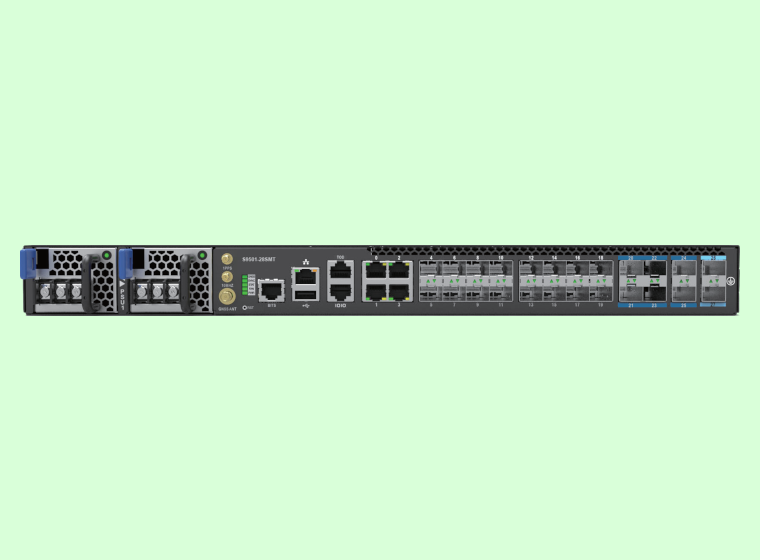

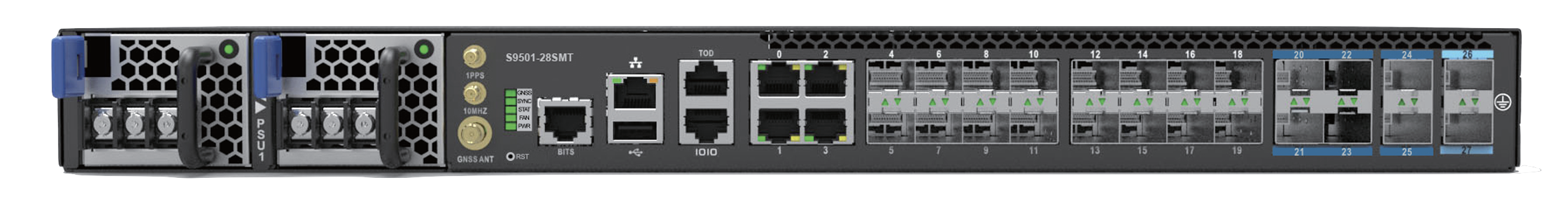

UfiSpace S9501-28SMT
Overview – UfiSpace S9501-28SMT
The UfiSpace S9501-28SMT is a disaggregated cell site gateway (DCSG) enables the deployment of open and disaggregated transport network services, while addressing the changing needs of the backhaul transport as telecoms make the transition from legacy technologies towards 5G New Radio (5G NR).
The S9501-28SMT is designed with high-speed interfaces. It supports full timing interfaces (ToD, BITS, 1PPS and 10MHz) and BMC for remote monitoring and managing capabilities. It is equipped with Broadcom’s Qumran-UX merchant silicon chip and provides 120GB switching capacity, 125Mpps packet throughput and 1GB deep packet buffer to accommodate the evolving cell site requirements of 5G services.
Furthermore, UfiSpace’s disaggregated cell site gateway routers are designed for outside plant installation, with temperature hardened case and comact size to fit into smaller cabinets. It is designed with hot swappable and field replaceable power supplies and fan units for convenience and easy maintenance.
Interfaces
- 8 x 1/10G SFP+ ports
- 16 x 100M/1G SFP ports
- 4 x 100M/1G RJ45 ports
Features
- Supports SyncE and IEEE 1588v2 (T-GM, T-BC/OC, T-TC, T-TSC)
- Integrated Stratum 3E OCXO with optional hold over performances
- Rich timing input/output interfaces: ToD, BITS, 1PPS and 10MHz
- Internal GNSS receiver for master clock implementations
- Class C timing accuracy
- 1GB deep buffering
- BMC for remote monitoring and management
- 2 hot swappable power supplies with 1+1 redundancy support
- 3 hot swappable fan modules with 2+1 redundancy support
- 1 RU compact design with 302mm depth suitable for standard 19″ racks

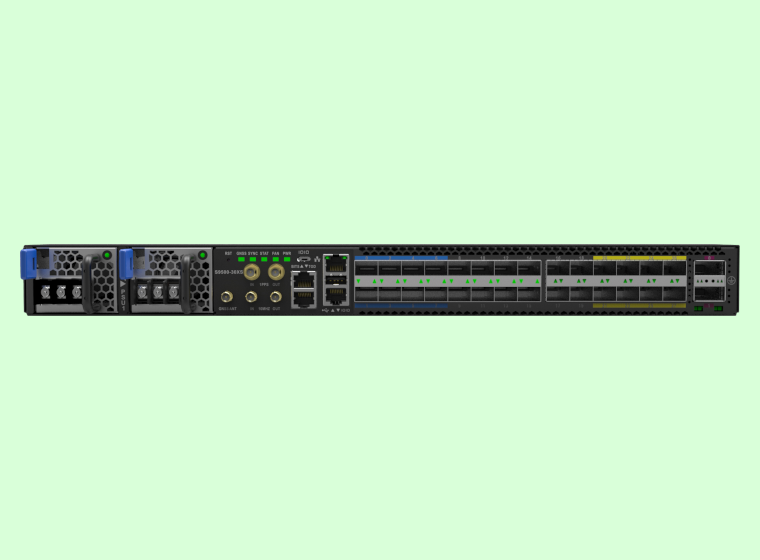

UfiSpace S9500-30XS
Overview – UfiSpace S9500-30XS
The UfiSpace S9500-30XS is a disaggregated cell site gateway (DCSG) enabling the deployment of open and disaggregated transport network services. The S9500-30XS is a high performance, versatile disaggregated cell site gateway router that is designed to address the changing needs of backhaul transport requirements as telecoms make the transition from legacy technologies towards 5G New Radio (5G NR).
The S9500-30XS is a future proof cell site gateway router with dense high-speed interfaces. It supports full timing features (SyncE and IEEE 1588v2), and QoS capabilities. It is equipped with a powerful processor, 3GB deep buffer and the neccessary timing ports.
Furthermore, UfiSpace’s cell site gateway routers are designed for outdoor installations. Furthermore, the S9500-30XS has hot-swappable power supplies and fan modules to provide convenience and lower the costs of maintenance.
As a disaggregated cell site gateway router, the S9500-30XS enables operators to deploy disaggregated open network infrastructure to lower their costs while rapidly scaling existing services to include 5G.
Interfaces
- 2 x 40/100G QSFP28 ports
- 8 x 1/10/25G SFP28 ports
- 20 x 1/10G SFP+ ports
Features
- Supports SyncE and IEEE 1588v2 T-GM, T-BC, T-TC, T-TSC
- Rich timing input/output interfaces: ToD, BITS, 1PPS and 10MHz
- Internal GNSS receiver for master clock implementations
- Supports 100M/1G for legacy BBU, 10G/25G for 5G BBU
- Supports backhaul data rates up to 100 Gbps
- 3GB deep buffering and Intel 1.5 GHz quad core CPU for network operation
- Class C timing accuracy
- Integrated Stratum 3E OCXO with optional hold over performances
- Individual BMC for monitoring and managing health status
- 2 hot swappable power supplies with 1+1 redundancy support
- 5 hot swappable fan modules with 4+1 redundancy support
- 1 RU compact design with 300mm depth suitable for standard 19″ racks

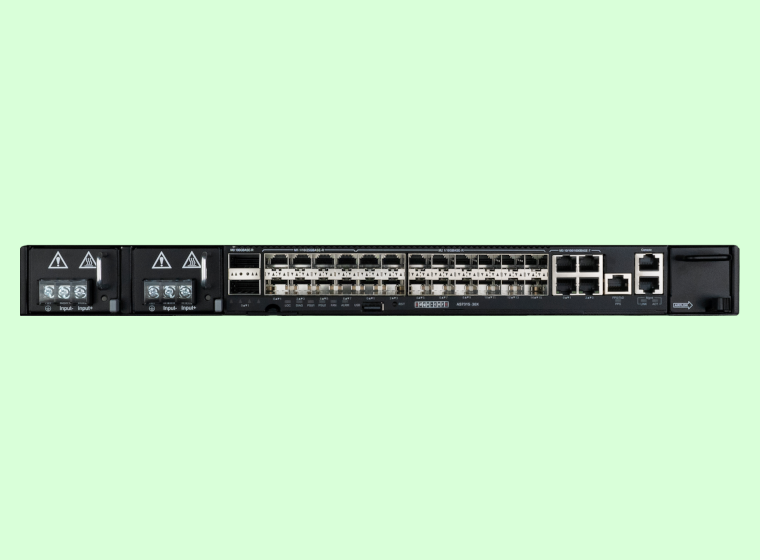

Edgecore AS7315-30X
Overview – Edgecore AS7315-30X
The Edgecore AS7315-30X is an open cell site gateway platform that features a combination of 1/10 Gbps, 25 Gbps, and 100 Gbps interfaces. It is optimized for access and aggregation networks. The AS7315-30X is temperature hardened design therefore it is able to operate at wide operational temperature range from -40°C to 65°C. It is equipped with load-sharing redundant/hot swappable PSUs and fan modules that provides high availability and hassle-free maintenance.
The CSR300 builds in industry-leading network timing and synchronization functions that makes it an ideal solution for current LTE and emerging 5G mobile backhaul network. The AS7315-30X is installed with ONIE (Open Network Install Environment) that provides the freedom of choice for the preferred NOS (Network Operating System) integration.
Interfaces
- 2 x 40/100G QSFP28 ports
- 8 x 1G/10G/25G SFP28 ports
- 16 x 1G/10G SFP+ ports
- 4 x 1G RJ45
Features
- Open cell site gateway platform for mobile backhaul networks
- 4 x 1G RJ45, 16 x 1G/10G SFP+, 8 x 1G/10G/25G SFP28, 2 x 100G QSFP28 fixed ports
- Full line-rate Layer 2 or Layer 3 forwarding speed of 300 Gbps.
- Support IEEE1588v2 and SyncE functions in hardware
- Rack mountable in standard 19″ racks
- Supports side-to-side airflow SKU
- All ports and PSUs are accessible on the front.
- Hot-swappable, load sharing, redundant AC/48VDC PSUs
- Hot swappable redundant fan modules
- Management: Ethernet and console RJ-45 ports; USB storage port
- Hardware switch pre-loaded with Open Network Install Environment (ONIE) compatible with:
- Open Network Linux (ONL)
- ADVA Ensemble Activator
- IP Infusion OcNOS
