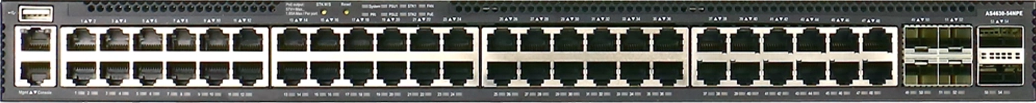

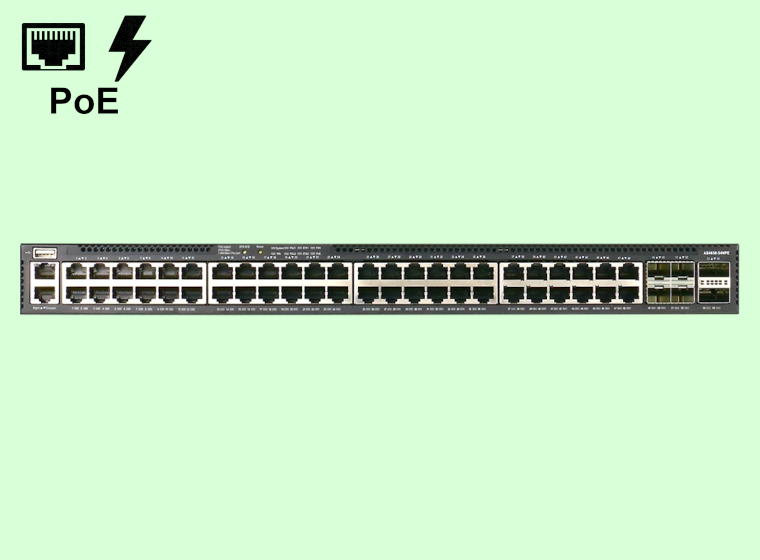

Edgecore AS4630-54NPE
Description
The Edgecore AS4630-54NPE / EPS203 is a high-performance Multi-Gigabit Ethernet L2/L3 switch featuring 54 ports. The EPS203 has 36 x 100M/1000M/2.5G ports,12 x 1G/2.5G/5G/10GBASE-T ports, 4 x 25G uplink ports and 2x100G QSFP28 stacking ports (stacking capability subject to NOS implementation); plus all RJ-45 Ethernet ports can support up to 90 W Power-over-Ethernet (PoE).
AS4630-54NPE / EPS203 is ideal for campus networking and it includes redundant hot-swappable AC PSUs and port-to-power airflow, and EPS203 able to provide up to 90 Watts (Dependson the PoE power budge) of power per port for all 48 RJ45 ports including 10G port to attached access devices, such as VoIP phones, wireless access points, surveillance cameras etc, which fully utilizing existing Cat. 6 cable infrastructure.
This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source NOS options and commercial NOS offerings.
Switch specifications
1 RU
| Ports |
36 x 100M/1000M/2.5G ports 12 x 1G/2.5G/5G/10G BASE-T ports 4 x 10G/25G SFP28 uplink ports 2 x 40/100G QSFP28 uplink ports |
| Power over Ethernet |
Up to 90 W per-port (depending on the PoE power budget) |
| Switching capacity | 348 Gbps Full duplex |
| ASIC | Broadcom Trident3-X3 |
| CPU | Intel® Atom® C3558 4-Core 2.2 GHz x86 processor |
| Power supplies | 1+1 Redundant PSU |
| Fans | Hot-swappable 2+1 redundant fans |
| Format | 1 RU |
Compatible Network Operating Systems
- Pica8 Inc. PicOS
- Enterprise SONiC distribution by Broadcom

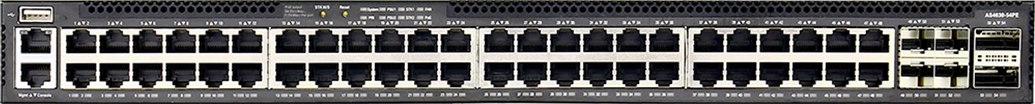

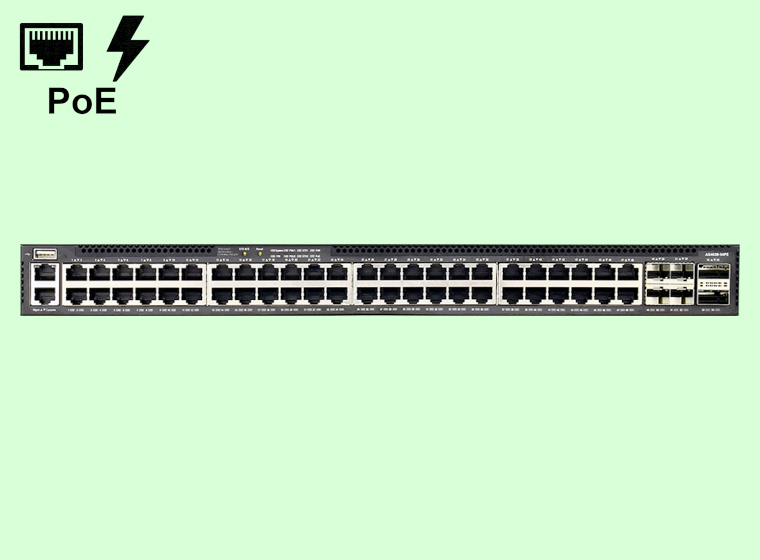

Edgecore AS4630-54PE
Description
The Edgecore AS4630-54PE / EPS202 is a high-performance Gigabit Ethernet Layer 3 switch featuring 54 ports; the EPS202 has 48 10/100/1000BASE-T ports, 4 x 25G SFP28 uplink ports, and 2 x 100G QSFP28 uplink ports ; plus the 48 10/100/1000BASE-T ports fully support IEEE 802.3at and IEEE 802.3bt Power-over-Ethernet (PoE).
The AS4630-54PE / EPS202 is ideal as a data center top-of-rack switch, it includes redundant hot-swappable AC PSUs and port-to-power airflow. It is ideal for campus networking, with the EPS202 able to provide up to 90 Watts (Depends on the PoE power budge) of power per port to attached devices, such as VoIP phones, wireless access points, surveillance cameras etc, fully utilizing existing Cat. 6 cable infrastructure.
This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source options, plus commercial NOS offerings.
Switch specifications
1 RU
| Ports |
48 x 10/100/1000BASE-T RJ-45 ports 4 x 10G/25G SFP28 uplink ports 2 x 40/100G QSFP28 uplink ports |
| Power over Ethernet |
Up to 90 W per-port (depending on the PoE power budget) |
| Switching capacity | 348 Gbps Full duplex |
| ASIC | Broadcom Trident3-X3 |
| CPU | Intel® Atom® C3558 4-Core 2.2 GHz x86 processor |
| Power supplies | 1+1 Redundant PSU |
| Fans | Hot-swappable 2+1 redundant fans |
| Format | 1 RU |
Compatible Network Operating Systems
- Arrcus ArcOS
- Pica8 Inc. PicOS
- Enterprise SONiC distribution by Broadcom

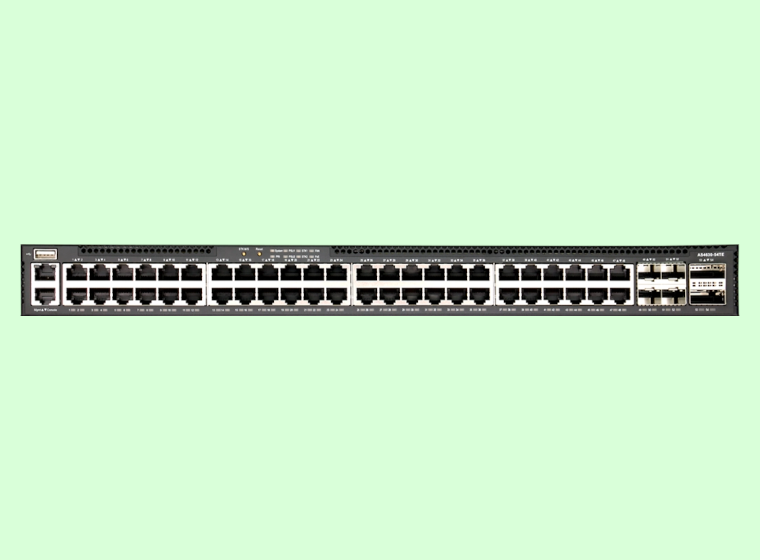

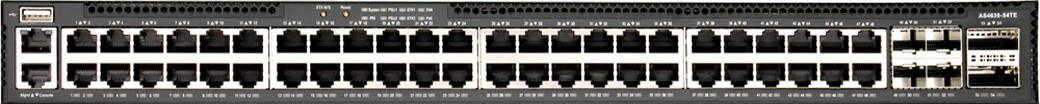

Edgecore AS4630-54TE
Description
The Edgecore AS4630-54TE / EPS201 is a high-performance Gigabit Ethernet Layer 3 switch featuring 54 ports; the EPS201 has 48 x 10/100/1000BASE-T ports, 4 x 25G SFP28 uplink ports, and 2 x 100G QSFP28 uplink ports.
The AS4630-54TE / EPS201 is ideal as a data center top-of-rack, enterprise, or campus switch, it includes redundant hot-swappable AC PSUs and port-to-power or power-to-port airflow.
This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source options, plus commercial NOS offerings.
Switch specifications
1 RU
| Ports |
48 x 10/100/1000BASE-T RJ-45 ports 4 x 10G/25G SFP28 uplink ports 2 x 40/100G QSFP28 uplink ports |
| Switching capacity | 348 Gbps Full duplex |
| ASIC | Broadcom Trident3-X3 |
| CPU | Intel® Atom® C3558 4-Core 2.2 GHz x86 processor |
| Power supplies | 1+1 Redundant PSU |
| Fans | Hot-swappable 2+1 redundant fans |
| Format | 1 RU |
Compatible Network Operating Systems
- Arrcus ArcOS
- Pica8 Inc. PicOS
- Enterprise SONiC distribution by Broadcom

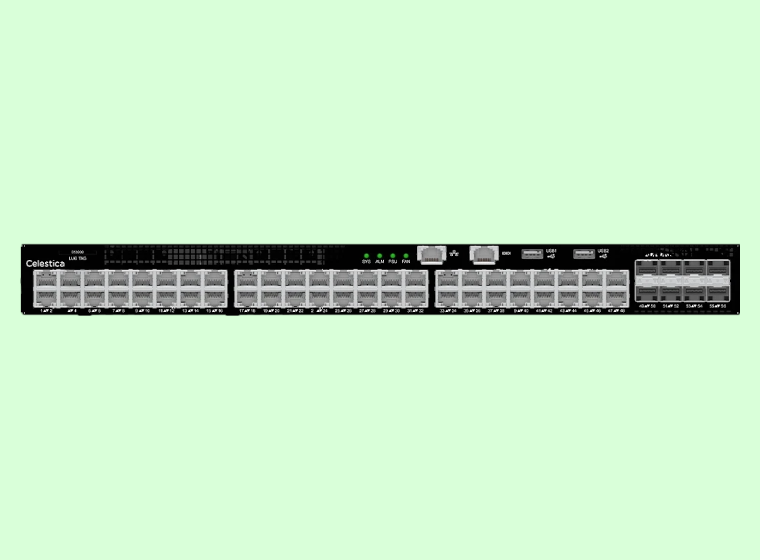

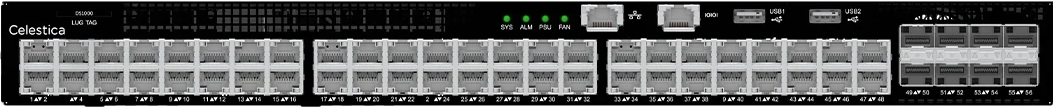

Celestica DS1000
Description
The Celestica DS1000 is an Open Compute Project (OCP) accepted design swtich. The DS1000 Ethernet switch offers 48 x 10/100/1000Mbps RJ45 ports and 8 SFP+ ports within a 1U form factor. With support for a COM-E modular atom-based control plane.
The Celestica DS1000 is ideal as an access switch for enterprise campus access networks or as an Out-Of-Band management switch in data centers.
This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible network operating system (NOS) soſtware, including the open source options and commercial NOS offerings.
Switch specifications
1 RU
| Ports |
48 x 10/100/1000BASE-T RJ-45 ports 8 x SFP+ uplink ports supporting 1GE/10GE |
| Switching capacity | 128 Gbps Full duplex |
| ASIC | Broadcom Trident3-X2 |
| CPU | Intel Denverton 4-Core |
| Power supplies | 1+1 Redundant PSU |
| Fans | Hot-swappable 2+1 redundant fans |
| Format | 1 RU |
Compatible Network Operating Systems
- IP Infusion OcNOS
- Enterprise SONiC distribution by Broadcom
- Enterprise SONiC distribution by Celestica

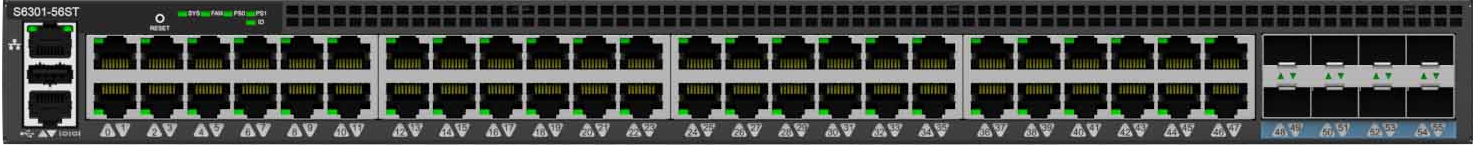

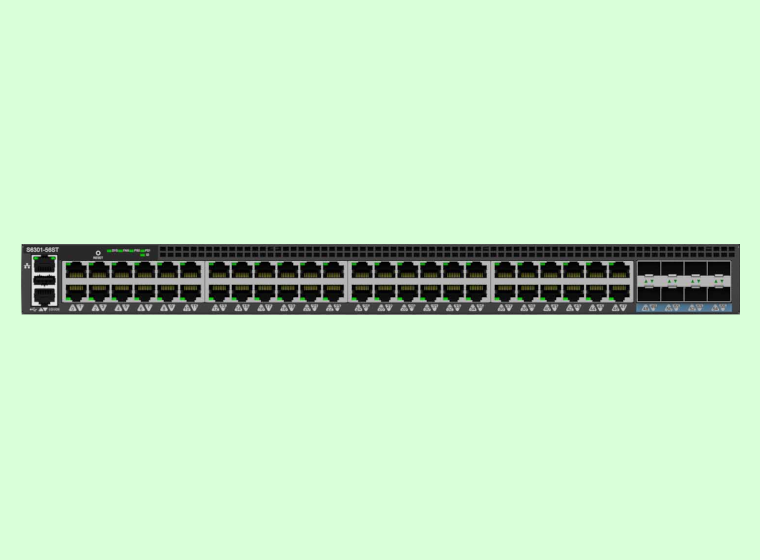

UfiSpace S6301-56ST
Description
The UfiSpace S6301-56ST is a high-performance, L2/L3 OOB management switch that is designed to address the fast growing requirements of data centers and provides enterprise and small businesses with versatile scalability and simplified data center
management.
With 48 x 1G RJ-45 ports and 8 x 10G SFP+ ports, the S6301-56ST management switch utilizes the Broadcom Trident3-X2 silicon to provide advanced quality of service (QoS) and resiliency for the management for centralized servers to enable high-efficiency Ethernet connectivity for data center services.
The S6301-56ST brings data centers to the future of networking with a powerful Intel Denverton 2-core or 4-core processor. It comes with redundant, hot swappable components for convenience, increased availability, reliability and lower costs of maintenance.
Switch specifications
1 RU
| Ports |
48 x 10/100/1000BASE-T RJ-45 ports 8 x SFP+ uplink ports supporting 1GE/10GE |
| Switching capacity | 130 Gbps Full duplex |
| ASIC | Broadcom Trident3-X2 |
| CPU | Standard : Intel Denverton 2-Core @ 1.6GHz Premium : Intel Denverton 4-Core @ 1.6GHz |
| Power supplies | 1+1 Redundant PSU |
| Fans | Hot-swappable, 1+1 redundant |
| Format | 1 RU |
Compatible Network Operating Systems
- Arrcus ArcOS
- IP Infusion OcNOS
- Enterprise SONiC
- Community SONiC

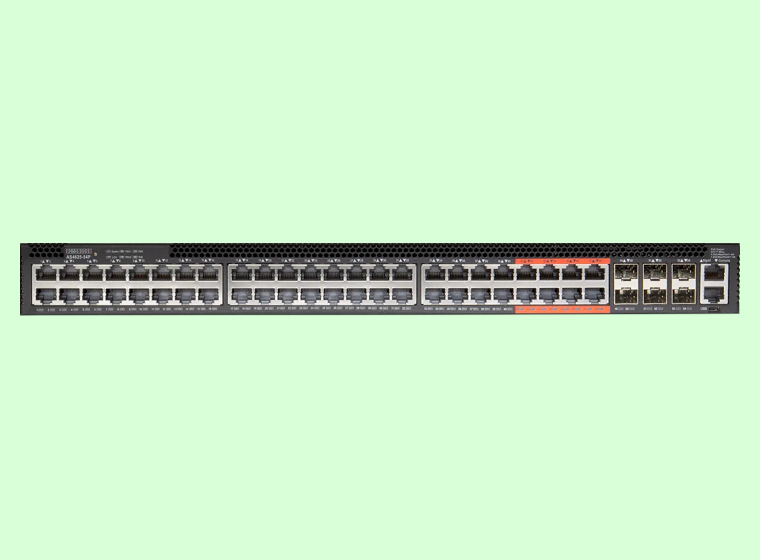

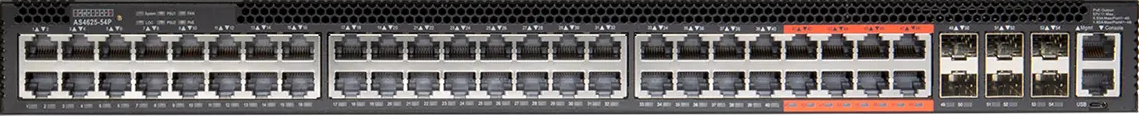

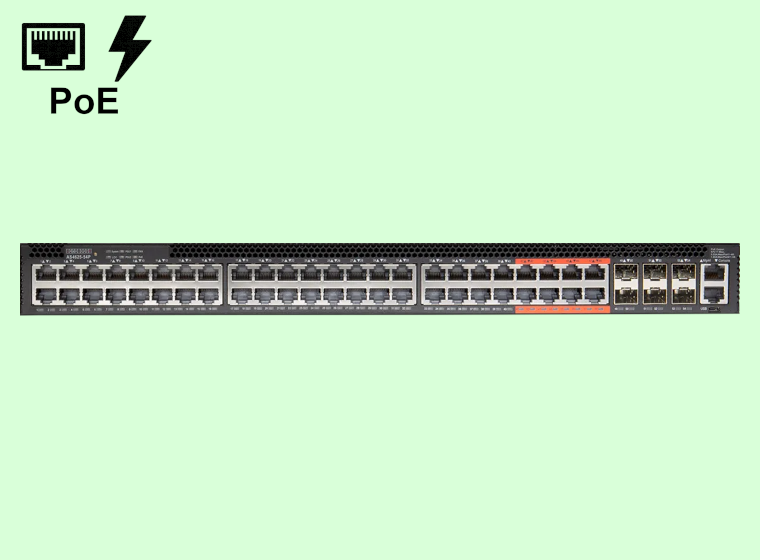

Edgecore AS4625-54P
Description
The Edgecore EPS122 is a cost-effective, high-performance Gigabit Ethernet L2 PoE switch featuring 54 ports; 48 x 10/100/1000BASE-T ports and 6 x 1G/10G SFP+ uplink ports. Ports 1 to 40 (10/100/1000BASE-T) fully support IEEE 802.3at and IEEE 802.3bt Power-over-Ethernet (PoE) up to 30 W, and ports 41 to 48 (10/100/1000BASE-T) fully support IEEE 802.3at and IEEE 802.3bt Type 4 up to 90 W.
The EPS122 is ideal as an access PoE switch for enterprise or campus access networks. The switch includes redundant, hot-swappable AC PSUs and fixed 2+1 redundant fans with front-to-back airflow, and an ability to provide 8 ports with up to 90 Watts of power per port (depending on the PoE power budget) to attached devices, such as VoIP phones, wireless access points, surveillance cameras etc, fully utilizing the existing Cat. 5/5e/6 cable infrastructure. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible network operating system (NOS) soſtware, including the open source options and commercial NOS offerings.
Switch specifications
1 RU
| Ports |
48 x 10/100/1000BASE-T RJ-45 ports 6 x SFP+ uplink ports supporting 1GE/10GE |
| Power over Ethernet |
Ports 1 to 40 up to 30 W per-port Ports 41 to 48 up to 90 W per-port. |
| Switching capacity | 108 Gbps Full duplex |
| ASIC | Broadcom Trident3-X2 |
| CPU | Intel® Atom® COMe module with C3508 4-Core 1.6GHz x86 processor |
| Power supplies | 1+1 Redundant PSU |
| Fans | Hot-swappable 2+1 redundant fans |
| Format | 1 RU |
Compatible Network Operating Systems
- IP Infusion OcNOS
- Enterprise SONiC distribution by Broadcom
- Community SONiC

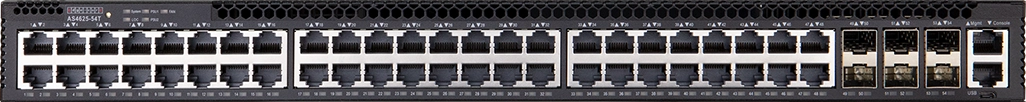

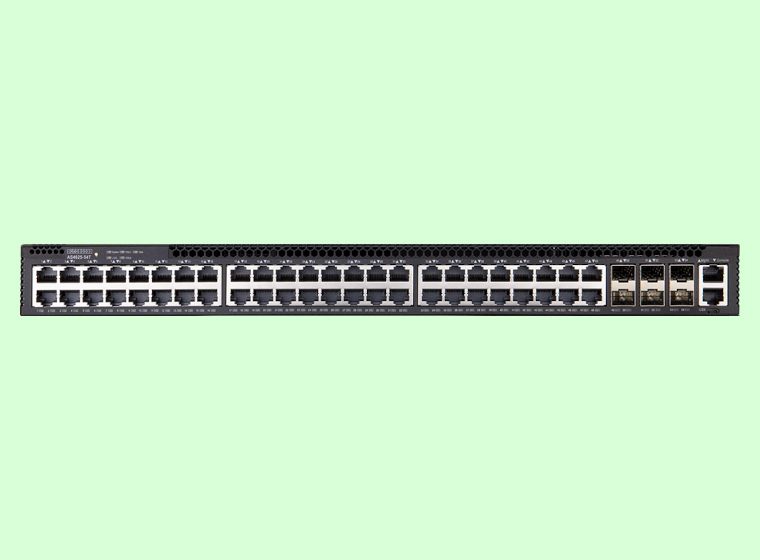

Edgecore AS4625-54T
Description
The Edgecore EPS121 is an easy-to-use Gigabit Ethernet L2 switch featuring 54 ports; 48 x 10/100/1000BASE-T ports and 6 x 1G/10G SFP+ uplink ports. The EPS121 is ideal as a management switch in data center networking, enterprise access networking, and campus access networking. The switch includes redundant, hot-swappable AC PSUs and fixed 2+1 redundant fans with front-to-back airflow or back-to-front airflow.
This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible network operating system (NOS) soſtware, including the open source options and commercial NOS offerings.
Switch specifications
1 RU
| Ports |
48 x 10/100/1000BASE-T RJ-45 ports 6 x SFP+ uplink ports supporting 1GE/10GE |
| Switching capacity | 108 Gbps Full duplex |
| ASIC | Broadcom Trident3-X2 |
| CPU | Intel® Atom® COMe module with C3508 4-Core 1.6GHz x86 processor |
| Power supplies | 1+1 Redundant PSU |
| Fans | Hot-swappable 2+1 redundant fans |
| Format | 1 RU |
Compatible Network Operating Systems
- IP Infusion OcNOS
- Pica8 Inc. PicOS
- Enterprise SONiC
- Community SONiC
